AMPLIFIER
Power output (All channels)
165 W/Ch (6 ohms, 1 kHz, 10% THD, 1-ch driven)
80 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC)
Dynamic power
160W (3 ohms, Front) 125W (4 ohms, Front) 85W (8 ohms, Front)
THD+N (Total Harmonic Distortion + Noise)
0.08% (20 Hz–20 kHz)
Input sensitivity and impedance
200mVrms/32k-ohms (Line)
Rated RCA output level and impedance
1Vrms 200m Vrms/2.2k-ohms (Zone B PreLine-out)
Frequency response
10 Hz–100 kHz/+1 dB, -3 dB (Direct/Pure Audio)
Tone control
±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble)
Signal-to-noise ratio
106 dB (Line, IHF-A)
Speaker impedance
4–16 ohms
TUNER
FM
87.5 MHz–107.9 MHz
AM
530 kHz–1,710 kHz
FM/AM preset memory
40 stations
GENERAL
Power supply
AC 120 V~, 60 Hz
Power consumption (operating)
490 W
Power consumption (idle)
45 W
Power consumption (standby)
0.1 W
Dimensions (W x H x D)
17 1/8˝ x 6 5/16˝ x 12 15/16˝ (435 x 160 x 328 mm)
Weight
8.4 kg
UPC
UPC
889951003564
CARTON
Dimensions (W x H x D)
20 11/16˝ x 9 7/16˝ x 15 15/16˝ (525 x 240 x 405 mm)
Weight
12.52 kg
ACCESSORIES INCLUDED
Included

Indoor FM Antenna, AM Loop Antenna, Speaker Setup Microphone, Quick Start Guide, Remote Control, Two AAA Batteries

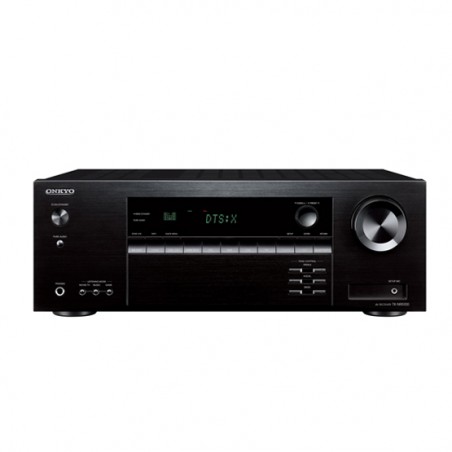

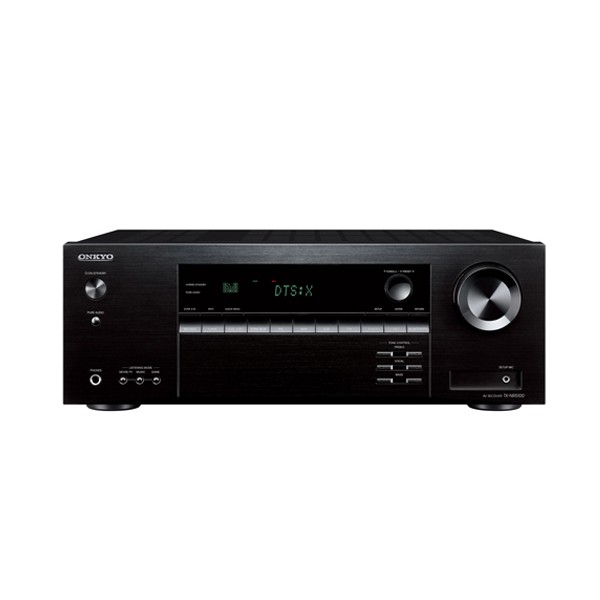

TX-NR5100
